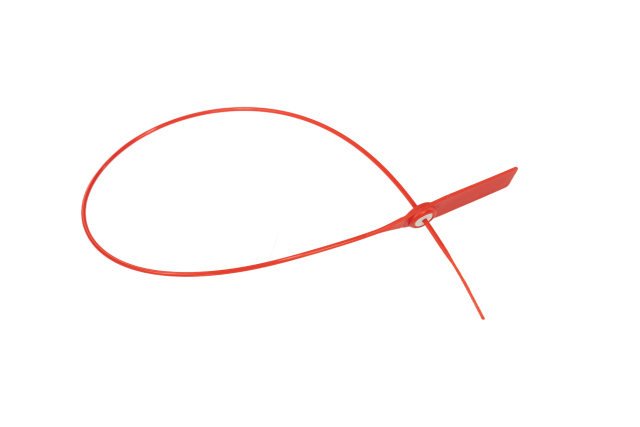

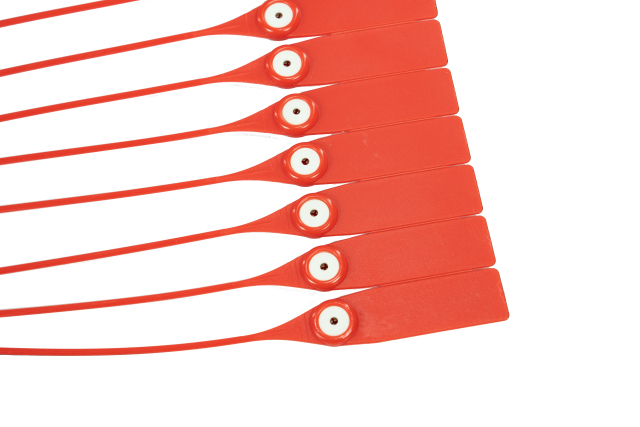

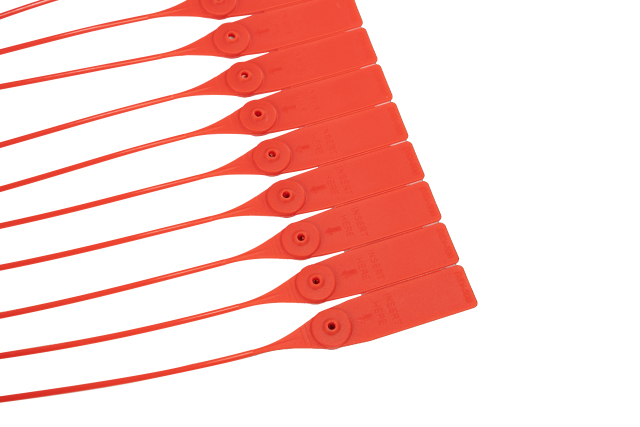

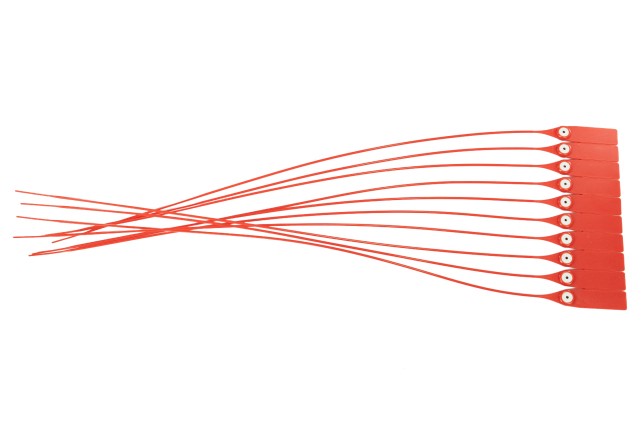

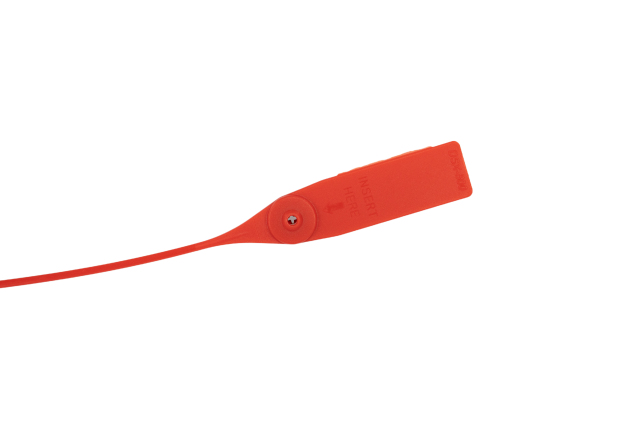

The DSX-500 Nylon Seal: Engineered Security for Critical Applications

Introduction

The DSX-500 Nylon Seal represents a breakthrough in tamper-evident security solutions. Designed as an indicative plastic seal, it combines compact dimensions with exceptional structural integrity. Ideal for logistics, transportation, hazardous material containment, and high-value asset protection, this seal delivers visible evidence of unauthorized access while maintaining robust physical resistance.

Core Technology & Security Features

1. Patented Metal Locking System

At the heart of the DSX-500 lies an aerospace-grade steel inlay embedded within Nylon PA 6.6. This floating metal clip mechanism generates 35kg of breaking strength despite the seal's compact 550mm profile. The metal core remains fully encapsulated, eliminating vulnerability to cutting or shimming attacks.

2. Permanent Heat Staking Technology

Utilizing pulsed thermal fusion, the cap undergoes molecular bonding with the seal body during application. This irreversible process:

• Creates a monolithic structure resistant to disassembly
• Triggers material deformation upon tampering attempts
• Leaves forensic-level evidence of interference

3. Multi-Layer Tamper Evidence

Three distinct security tiers operate simultaneously:

1. Physical Barrier: The overmolded cap protects the locking mechanism
2. Structural Indicator: Any tensile force exceeding 25kg fractures the nylon matrix visibly
3. Forensic Layer: Microscopic crystalline realignment occurs during tampering

Technical Specifications

| Parameter | Specification | Performance Significance | |-----------------------|--------------------------------|----------------------------------------| | Material Composition | Nylon PA 6.6 + Steel Inlay | UV/chemical resistance + 35kg strength | | Total Length | 550 mm | Optimal for standard locking hasps | | Flag Dimensions | 50 × 18 mm | High-visibility identification area | | Tail Cross-Section | Ø2.3 mm | Compatibility with narrow apertures | | Breaking Strength | 35 kg12 H-class requirements| | Operating Temperature | -40°C to +85°C | Suitable for global logistics |

Strategic Application Advantages

1. Custom Security Protocols

The replaceable nylon mounting ring accommodates:

• RFID tags for digital tracking
• Barcoded sleeves for inventory integration
• Custom branding imprints

2. Dynamic Color Coding System

Available in white seal with blue or red caps, the DSX-500 supports:

• Hierarchical access control (e.g., red=high security)
• Departmental segregation
• Chain-of-custody verification Custom color combinations available for enterprise implementations

3. Cross-Industry Implementation

• Transportation: Container seals meeting C-TPAT standards
• Energy: Metering device protection with audit trail compliance
• Pharmaceutical: Temperature-controlled shipment integrity
• Retail: High-value merchandise security during transit

The DSX-500 meets or exceeds:

• ISO 17712:2013 (H-class mechanical seals)
• TAPA FSR 2020 requirements
• US Customs security provisions
• EU Regulation 2016/425 (PPE Category III)
